E.sybox

TECHNICAL DATA

Operating range: capacity up to 120 l/min; head up to 65 m. Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral. Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C Maximum suction depth: 8 metres - 7 metres 30/50 version Maximum ambient temperature: +40°C Maximum operating pressure: 8 bar (800 kPa) Motor protection rating: IPX4 Insulation class: F Insulation class: Horizontal or vertical fixed position Special executions on request: alternative voltages and/or frequencies.

APPLICATIONS

E.SYBOX is DAB’s integrated electronic water pressurisation system for domestic and residential use. The E.SYBOX inverter system provides the comfort of constant water pressure, while saving energy too. Suitable for use for potable water, in domestic plants for gardening and irrigatio. Suitable for creating groups of up to 4 pumps. E.SYBOX requires no additional components for installation.

FEATURES

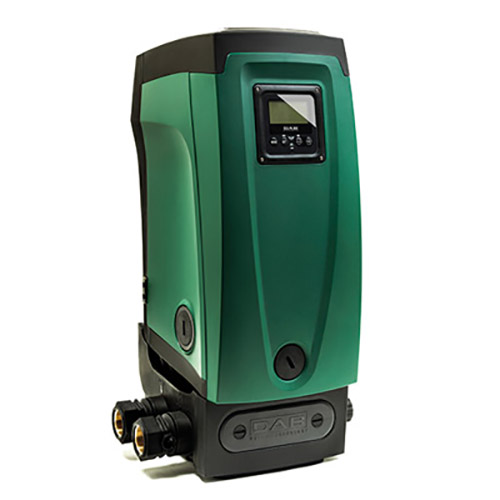

E.SYBOX comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high resolution LCD display and an integrated 2 litre expansion tank. May be installed either vertically or horizontally, in closed spaces without high level of air exchange. The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities. The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact poroduct very quiet (45dB under normal use). The wireless system enables the creation of other pressurisation groups able to connect with other DAB devices (eg, e.sylink).
