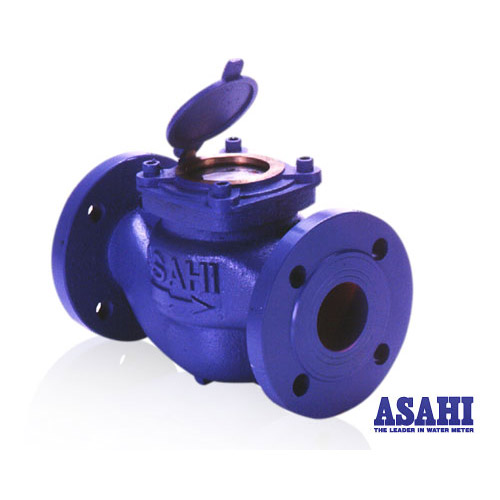

Đồng hồ nước WVM ASAHI

Còn hàng

Liên hệ

Mô tả sản phẩm

Name Of Part

NO.	NAME OF PARTS
1	LID
2	HINGE PIN
3	HEAD CASING
4	GASKET TOP
5	HEAD GASKET
6	COVER BOLT
7	BODY CASING
8	STRAINER
9	REGISTER CAST WITH BEARING
10	REGISTER CASE RING
11	PLATE RING
12	SEAL CASE COMPLETE
13	UPDER CASING
14	VANE WHEEL
15	LOWER CASING COMPLETE
16	GASKET BOTTOM

Dimensions มิติ (mm.)

Model	Size	D	D1	D2	N-D	H	h	L
WVM 50	2"	50	165	125	4-19	190	80	270
WVM 65	2.1/2"	65	185	145	4-19	285	112	280
WVM 80	3"	75	200	160	8-19	337	140	300
WVM 100	4"	100	220	180	8-19	375	170	360
WVM 150	6"	150	285	240	8-23	431	200	500

Accuracy and Pressure Drop Curve

Flanged water meters. (Flanged cast iron).

Standard ISO 7005-2 PN 10

OR	- DIN 2576 10 BAR - DIN 2527 10 BAR - DIN 2632 10 BAR

Technical Data
- The amount of water at a temperature between 5-60 degrees Celsius.
- The test pressure is 5.17 kg / cubic meter.
- Is made of cast iron water meter (Cast lron Fc20).

SIZE	Qmax - Max. Flow (m³/h)	Qn Nominal Flow (m³/h)	Qt - Transition Flow (m³/h)	Qmin - Min. Flow (m³/h)	Starting Flow (m³/h)	Min.Reading (m³)	Max.Reading (m³)
WVM 50	30	15	3	0.55	0.8	0.002	999,999
WVM 65	50	25	3	0.6	0.1	0.002	999,999
WVM 80	80	40	4	0.6	0.15	0.002	999,999
WVM 100	120	60	7	0.8	0.2	0.002	999,999
WVM 150	300	150	10	1.4	0.5	0.01	999,999
